Product Description
Telstra/Optus/Vodafone* Cel-Fi Go G51 Smart Repeater RFI Building Kit is suitable for building applications and is designed to boost multiple bands from a single selected carrier. The G51 is designed to bring the power of the 5G network indoors and solves coverage problems by providing up to 100dB signal gain. You can set the unit to boost either Telstra (approved), Optus (approved) or Vodafone* (* pending approval) and easily switch between them should you decide to change carrier in the future. The kit includes a 14dBi Pole Mount Log Periodic Directional Antenna (LPDA) with 10m low loss cable and Two 8dBi Coverage Panel Antenna with two 10m low loss cables. The Coverage Antenna can be optionally replaced with a selection of high performance Ceiling Coverage Antennas. For cable length options, lightning arrestor, battery backup and antenna mounting pole, see ACCESSORIES below.
| Downloads | |||
 |
Cel-Fi Go G51 Stationary Data Sheet | ||

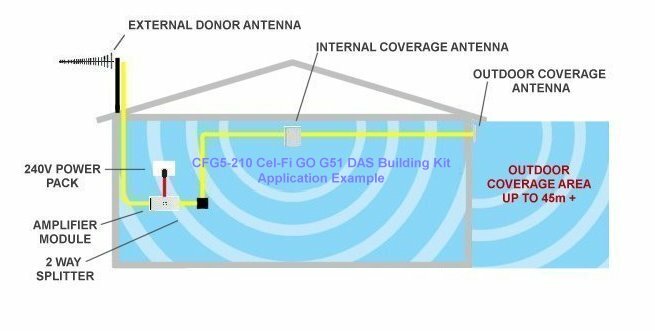

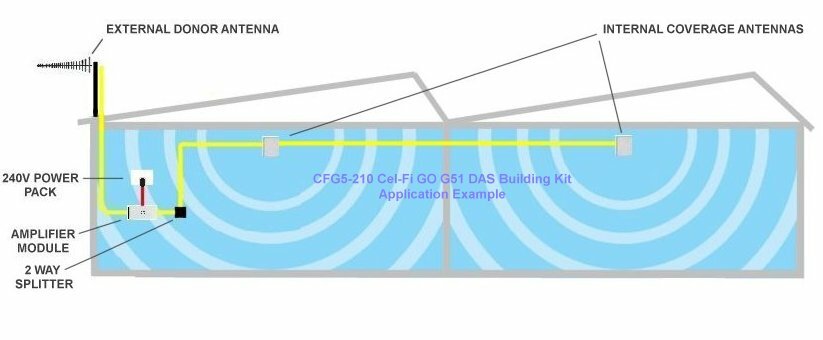

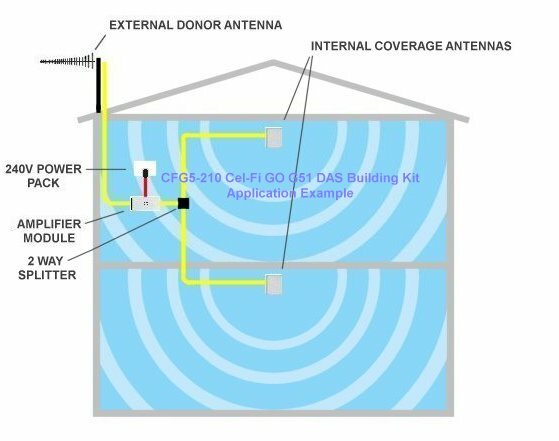

Application example:
Cel-Fi Go G51 Smart Repeater represents the latest in cellular repeater technology. Building on the success of the G41 model.
Cel-Fi Go G51 Smart Repeater is ideal for large inbuilding cellular coverage applications for Telstra, Optus and Vodafone. The higher output power means more service antennas can be run from the one repeater, and by popular request, the unit now has an RJ45 Ethernet network interface for remote management.
Features:
- Mid-band (3.5 GHz) 5G NR coverage with 100 MHz channel bandwidth
- Dual-band relay to extend 2G/3G/4G coverage with mid-band 5G NR
- Powered by the latest 4th generation Nextivity proprietary IntelliBoost chip, delivering industry-leading and unconditionally network safe performance

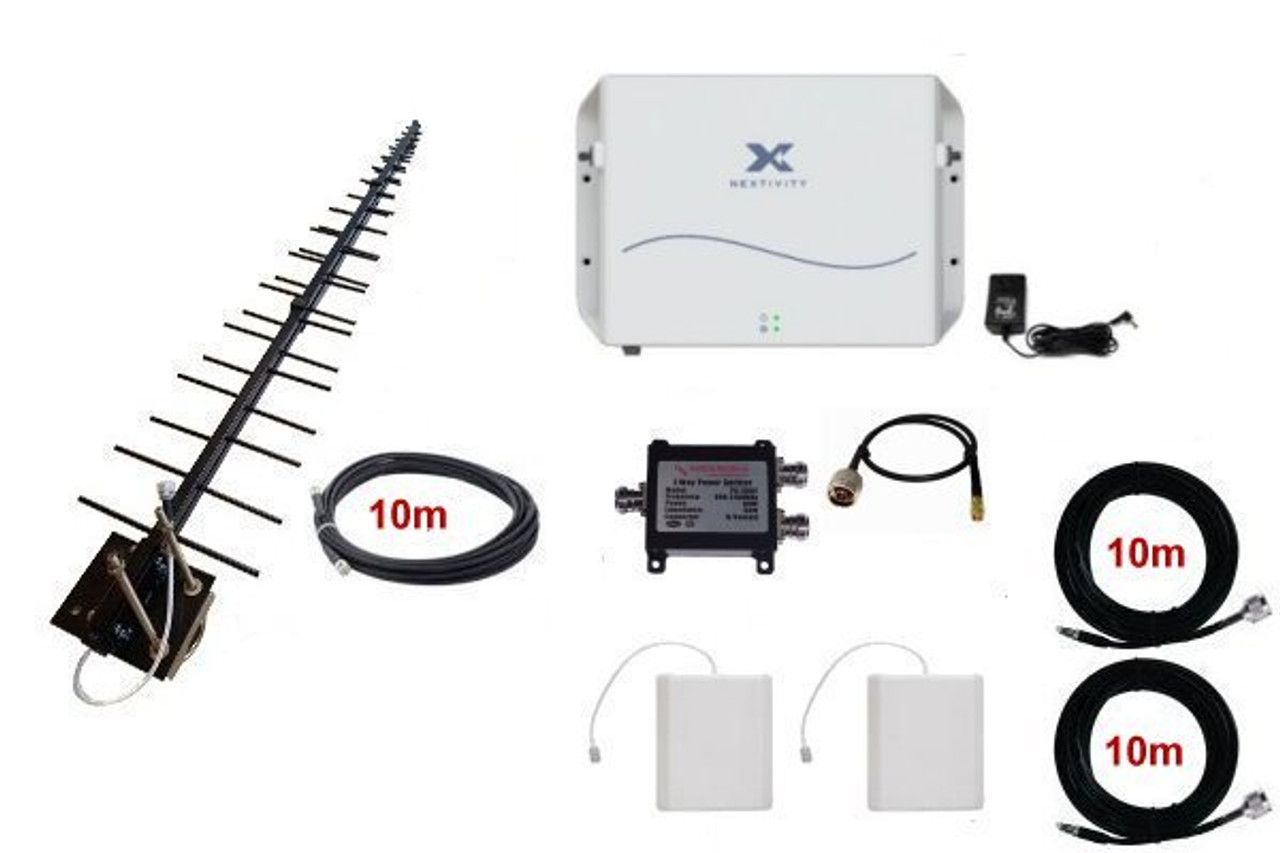

Includes:
- Cel-Fi Go G51 Smart Repeater
- 14dBi Log Period Yagi Antenna (LPDA) with 10m LMR240 grade low loss cable
- Two (2) 8dBi Indoor Panel Antenna with 10m LMR195 grade low loss cables
- 2-way splitter with 0.25m LMR195 grade low loss cable
- 240V Mains Power Supply
Installation should be carried out strictly in accordance with the Cel-Fi GO Quick Start Guide and any other information contained in the box. Misuse of this equipment or failure to follow the instructions in the Quick Start Guide could result in injury and equipment damage. In no event will Comnet Solutions be responsible or liable for either indirect or consequential damage or injury that may result from the installation or use of this equipment. Please contact our Support Team if you have any questions regarding the above precautions. Use our online Contact Form for quick response.
Specifications are subject to change without notice. Picture may not be exact model as described.
