Product Description
Telstra/Optus/Vodafone Cel-Fi Go G41 Smart Repeater Building Edge DAS Kit 3G/4G/5G* is suitable for building applications and is designed to boost multiple bands from a single selected carrier. You can set the unit to boost either Telstra, Optus or Vodafone and easily switch between them should you decide to change carrier in the future. Includes a High Performance 20dBi Yagi/Grid Edge Donor Antenna with 10m 400 super low loss cable and two (2) 8dBi Coverage Panel Antenna with 10m low loss cables. Edge Antenna is designed for regional applications on the edge of the network. The Coverage Antenna can be optionally replaced with a selection of high performance Ceiling Coverage Antennas. For cable length options, lightning arrestor, battery backup and antenna mounting pole, see ACCESSORIES below.
* Telstra 5G is not currently enabled due to carrier approval.
| Downloads | |||
 |
Cel-Fi Go G41 Data Sheet | ||

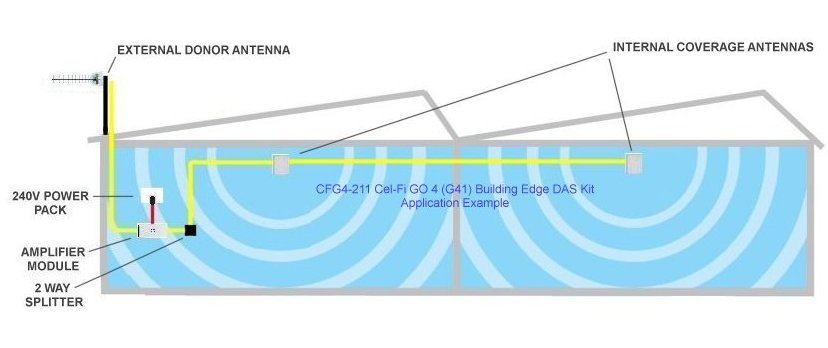

Application examples:
Cel-Fi Go G41 Smart Repeater represents the latest in 4G cellular repeater technology. Building on the success of the GO2 model, G41 has a higher output power (+20 dBm), providing the largest coverage area of all GO models.
Cel-Fi Go G41 Smart Repeater operates on more frequency bands, now supporting Optus 700 MHz and 2300 MHz 4G networks, and can be easily switched between Telstra, Optus and Vodafone-TPG should you change service provider.
Cel-Fi Go G41 Smart Repeater is ideal for large inbuilding cellular coverage applications for Telstra, Optus and Vodafone. The higher output power means more service antennas can be run from the one repeater, and by popular request, the unit now has an RJ45 Ethernet network interface for remote management.
Expanding on GO2’s dual-band functionality, G41 supports carrier aggregation with 40 MHz of relay bandwidth.
Features:
- 700L/850/900/1800/2100/2300/2600 MHz (700 band not supported on Vodafone)
- 3G, 4G, VoLTE, NB-IoT (GO4 has 5G capabilities, but currently not enabled or approved)
- Carrier Switching using WAVE App between Telstra, Optus or Vodafone
- Up to 3000 m2 coverage area
- Two band simultaneous relay
- Total System Relay Bandwidth – Up to 40 MHz
- Remote Monitoring, Control and Alert Capabilities via WAVE Portal
- Ethernet Port for connection to internet source for live monitoring
Includes:
- Cel-Fi Go G41 Smart Repeater
- 18dBi Yagi/Grid Antenna with 10m LMR400 grade super low loss cable
- Two (2) Indoor 8dBi Panel Antenna with 10m LMR195 grade low loss cables
- 2-way splitter with 0.25m LMR195 grade low loss cable
- 240v Mains Power Supply
Installation should be carried out strictly in accordance with the Cel-Fi GO Quick Start Guide and any other information contained in the box. Misuse of this equipment or failure to follow the instructions in the Quick Start Guide could result in injury and equipment damage. In no event will Comnet Solutions be responsible or liable for either indirect or consequential damage or injury that may result from the installation or use of this equipment. Please contact our Support Team if you have any questions regarding the above precautions. Use our online Contact Form for quick response.
Specifications are subject to change without notice. Picture may not be exact model as described.
ACCESSORIES
Other Details
| Mechanical Specification - Cel-Fi GO 4 G41 Smart Repeater Module |
| Material | Powder Coated Aluminum |
| Colour | White |
| Nett Weight Grams | 2000 |
| Connector | SMA Female/SMA Female |
| Cable | n/a |
| Mounting Method | Surface Mount/4 Self-tapping screws included |
| Dimensions mm | 63(h) x 100(w) x 260(l) |
Specifications are subject to change without notice.
