Product Description

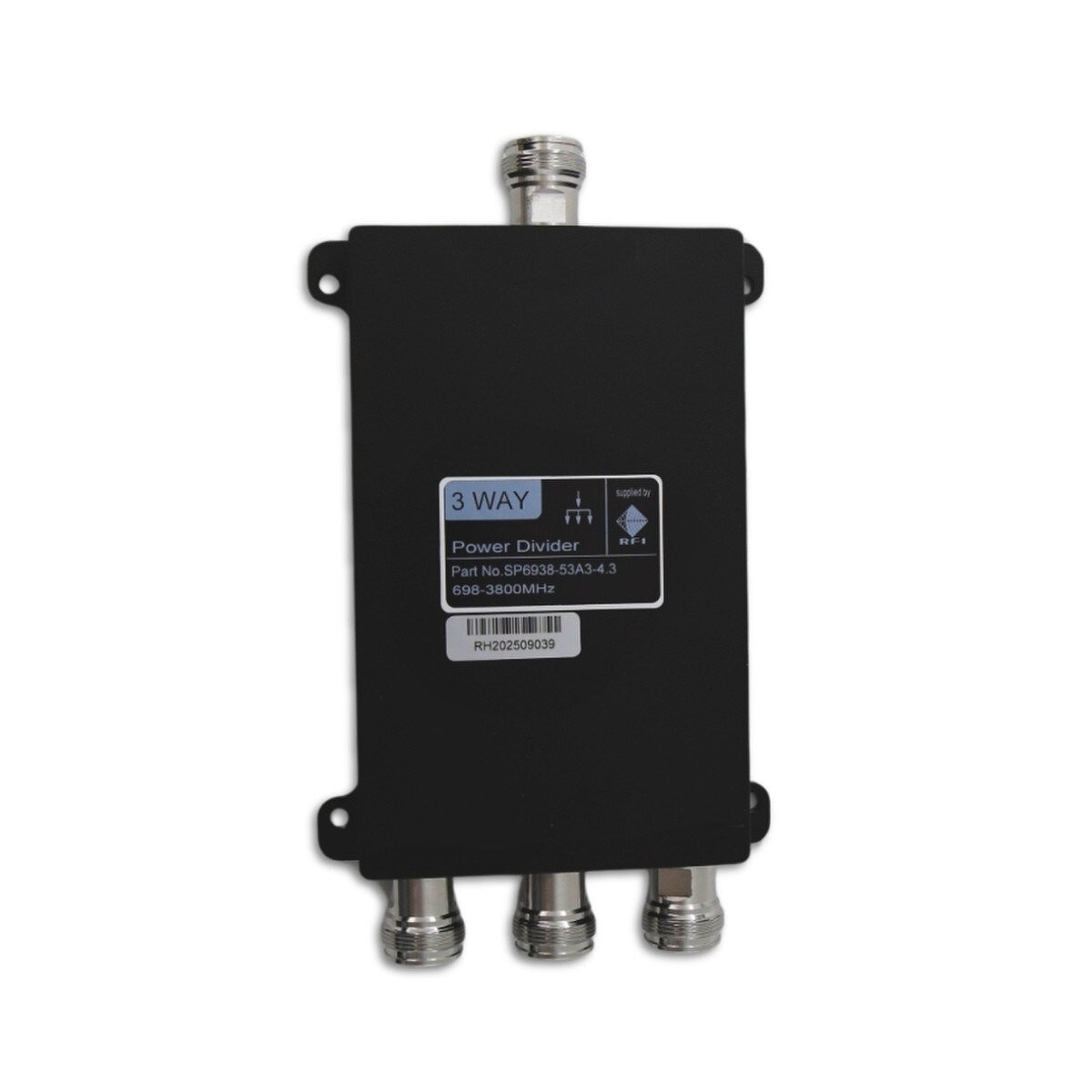

RFI 3 Way Splitter for 4.3-10 698-3800MHz Low PIM. Allows 3-way splitting of antenna signal so that three devices may simultaneously use the antenna. Can also be used as a signal combiner in DAS repeater applications and are designed to split RF source power into an equal ratio of power outputs, or combine multiple inputs to a single output with isolation between the ports.
These products feature broad operating frequency bandwidth and multi-carrier PIM rating, and are widely used in Distributed Antenna Systems (DAS), receiver distribution networks and low-power RF signal dividing and combining designs. Their compact size, IP rating and ease of installation suits a wide range both indoor and outdoor deployments. All wireless band frequencies in the range from 698 to 3800 MHz are covered with optimal RF performance for GSM, 3G, 4G and 5G.
See below for 4.3-10 Adaptors, Fly Leads and Cables.
Specifications are subject to change without notice. Picture may not be exact model as described.
Other Details
| Mechanical Specification |
| Material | Powder Coated Aluminium |
| Colour | Black |
| Nett Weight Grams | 810 |
| Connector | 5 x N Female |
| Cable | n/a |
| Mounting Method | Surface Mount |
| Dimensions mm | 149(l) x 128(w) x 22(d) |
Specifications are subject to change without notice.
