Product Description
PD2130 Instock Wireless is a RoHS compliant, 3 way, wide band, 50 ohm, RF power divider, power combiner with SMA female coaxial connectors. All wireless band frequencies in the range from 698 to 2700 MHz are covered with optimal RF performance. Max microwave input power levels up to 40 watts can be handled in both power splitter and power combiner applications.
| Downloads | |||
 |
Antenna Divider, Combiner, Splitter, 3 Way, SMA Female Data Sheet | ||
Product Overview
- Broadband Frequency (0.698 - 2.700 GHz)

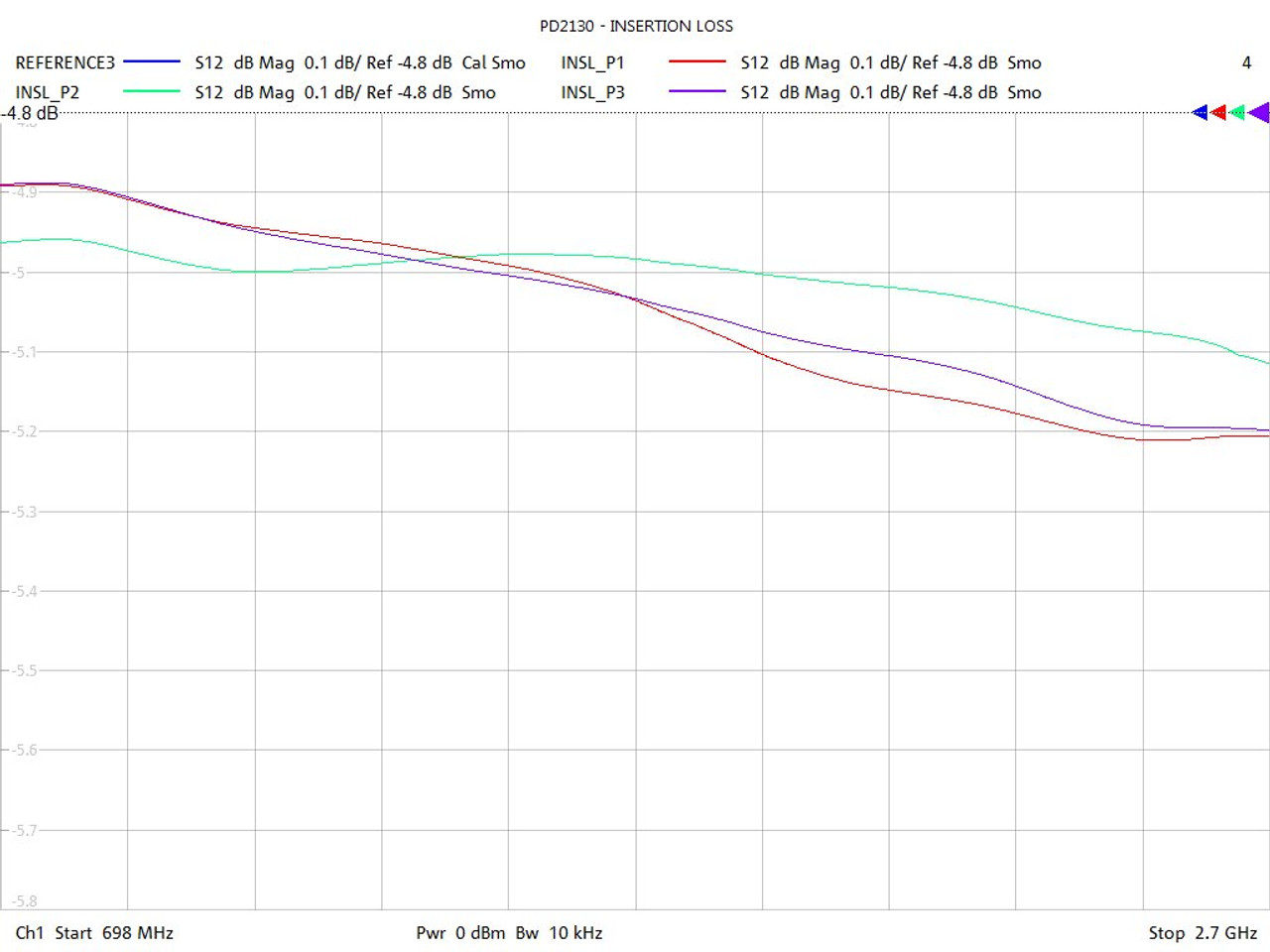

- Low Insertion Loss (0.3 dB avg)
- High Port to Port Isolation (30 dB avg)
- Excellent VSWR (1.10 : 1 avg)
- RoHS Compliant Splitter Construction
- Tri Alloy SMA Female (Jack) Low PIM
Specifications are subject to change without notice. Picture may not be exact model as described.
Other Details
| Mechanical Specification |
| Material | Aluminum, clear chem conversion film |
| Colour | Silver |
| Nett Weight Grams | 192 |
| Connector | 4 x SMA Female |
| Cable | n/a |
| Mounting Method | Surface Mount |
| Dimensions mm | 97.9(l) x 75.7(w) x 22.2(d) |
Specifications are subject to change without notice.
