Cel-Fi Repeater Applications
Cel-Fi Repeater Building Applications
The Cel-Fi Smart Repeater is scalable mobile phone booster that can be configured for various building applications. By splitting the output of the amplifier module, multiple coverage areas (up to 4+) can be accommodated. For larger areas or multi carrier applications, multiple units can be used. Applications include small to large residential buildings, commercial premises, retail shops, warehouses, multi level buildings and outdoor applications including combinations of indoor and outdoor areas. Apart from our standard kits, Comnet can design a custom mobile phone booster system for your building.
| Application Examples for buildings (G31, G32 and G41 Stationary Mode) | |||
 |
 |
 |
 |

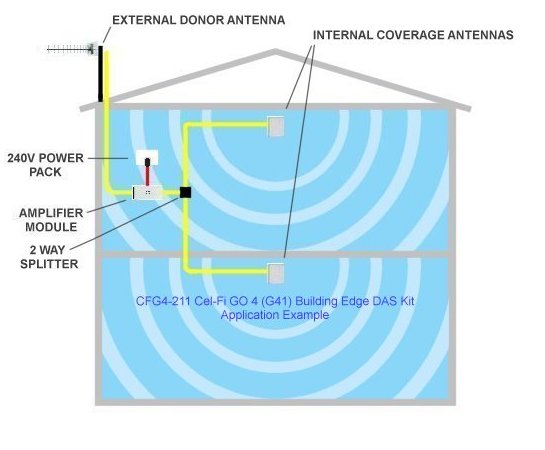

| CFGS-203 Building Edge Kit showing typical layout of antennas, cabling and components in a single level house with single coverage antenna. | CFGS-211 DAS Building Edge Kit showing typical layout of antennas, cabling and components in a two level House with two coverage antennas. | CFG4-211 DAS Building Edge Kit showing typical layout of antennas, cabling and components in a single level house with one internal coverage antenna and one external coverage antenna. | CFG4-211-4 DAS Building Edge Kit showing typical layout of antennas, cabling and components in a two level large building with four internal coverage antennas. |
Cel-Fi Repeater Mobile Applications
The Cel-Fi Smart Repeater is a mobile phone booster that can be configured for various vehicle applications when set to Mobile mode using a Cel-Fi GO G31 or Cel-Fi GO X G32. Applications include cars, 4WD, motor homes, trucks, commercial vehicles, caravans, boats and many other mobile applications including farming and mining equipment.
| Application Examples for vehicles, caravans and boats (G31 and G32 Mobile Mode) | |||
 |
 |
 |
 |

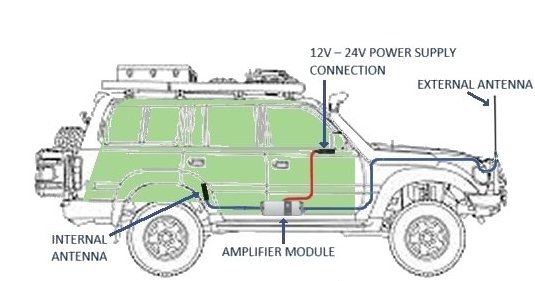

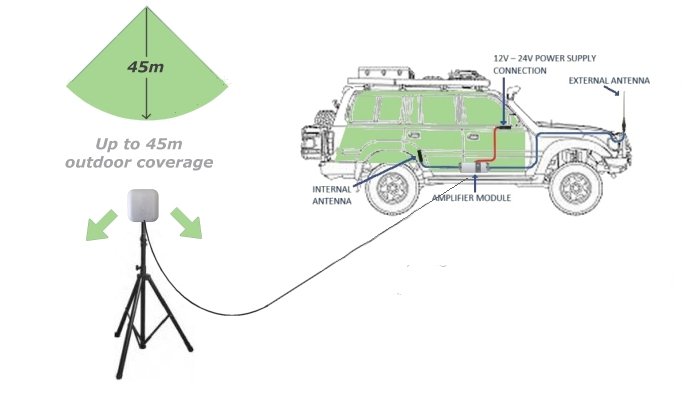

| CFGM-103B Trucker Edge Kit showing typical layout of antennas, cabling and components in a 4WD vehicle. | CFGM-204 Caravan Kit showing typical layout of antennas, cabling and components in a caravan. | CFGM-204S Marine Kit showing typical layout of antennas, cabling and components in a medium size boat. | CFGM-105C Campsite Trucker Kit showing typical layout of antennas, cabling and components. Includes a tripod for mounting the external antenna to create a coverage area at your campsite or worksite. |
